Looking at Stuff in a PDF

When poking around in a PDF, it is useful not simply to read descriptions of objects (text, images, etc) but also to visualise them in the rendered document. pdfplumber is quite nice for this, though it is oriented towards the particular set of objects that it can extract from the PDF.

The primary goal of PLAYA-PDF is to give access to all the objects and particularly the metadata in a PDF. One goal of PAVÉS (because there are a few) is to give an easy way to visualise these objects and metadata.

First, maybe you want to just look at a page in your Jupyter notebook. Okay!

import playa, paves.image as pi
pdf = playa.open("my_awesome.pdf")
page = pdf.pages[3]
pi.show(page)

Something quite interesting to do is, if your PDF contains a logical structure tree, to look at the bounding boxes of the contents of those structure elements for a given page:

pi.box(page.structure)

Note however that this only gives you the elements associated with marked content sections, which are the leaf nodes of the structure tree. So, you can also search up the structure tree to find things like tables, figures, or list items:

pi.box(page.structure.find_all("Table"))
pi.box(page.structure.find_all("Figure"))
pi.box(page.structure.find_all("LI"))

You can even search with regular expressions, to find headers for instance:

pi.box(page.structure.find_all(re.compile(r"H\d+")))

Alternately, if you have annotations (such as links), you can look at those too:

pi.box(page.annotations)

You can of course draw boxes around individual PDF objects, or one particular sort of object, or filter them with a generator expression:

pi.box(page)  # outlines everything
pi.box(page.texts)
pi.box(page.images)
pi.box(t for t in page.texts if "spam" in t.chars)

Alternately you can "highlight" objects by overlaying them with a semi-transparent colour, which otherwise works the same way:

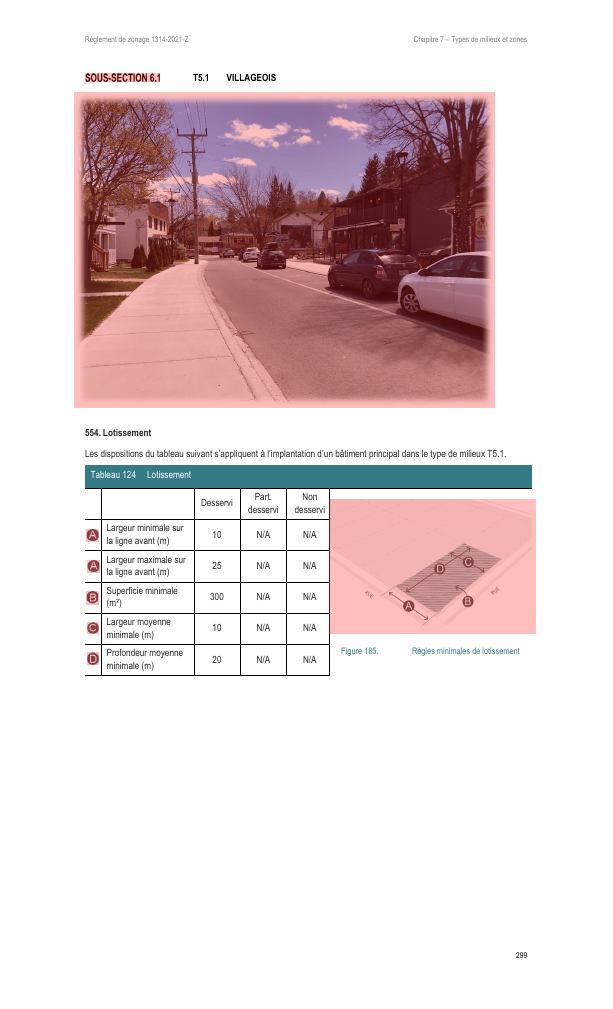

pi.mark(page.images)

If you wish you can give each type of object a different colour:

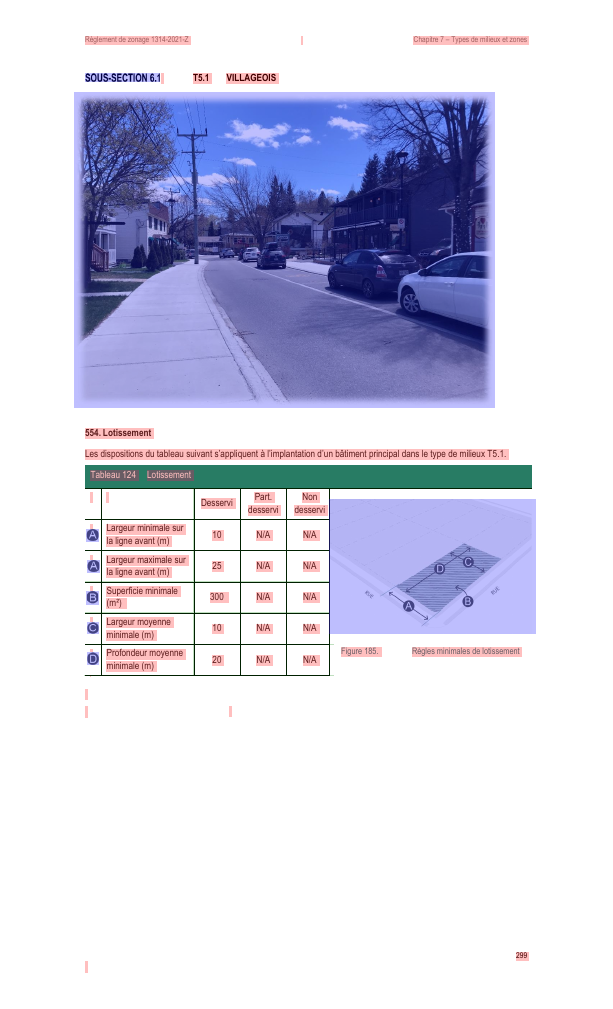

pi.mark(page, color={"text": "red", "image": "blue", "path": "green"})

You can also add outlines and labels around the highlighting:

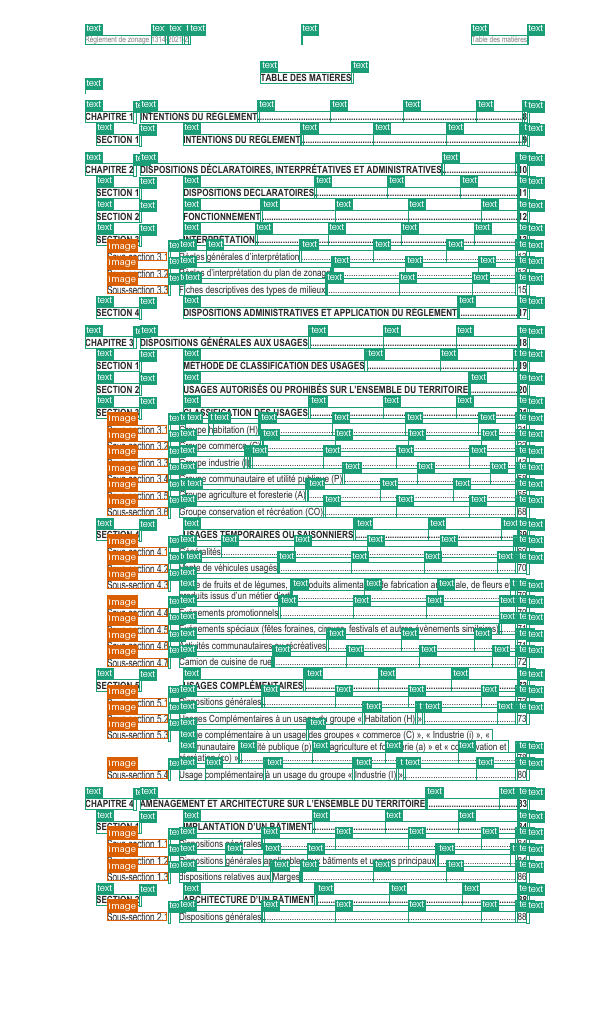

pi.mark(page, outline=True, label=True,
        color={"text": "red", "image": "blue", "path": "green"})

By default, PAVÉS will assign a new colour to each distinct label based on a colour cycle borrowed from Matplotlib (no actual Matplotlib was harmed in the making of this library). You can use Matplotlib's colour cycles if you like:

import matplotlib
pi.box(page, color=matplotlib.color_sequences["Dark2"])

Or just any list (it must be a list) of color specifications (which are either strings, 3-tuples of integers in the range [0, 255], or 3-tuples of floats in the range [0.0, 1.0]):

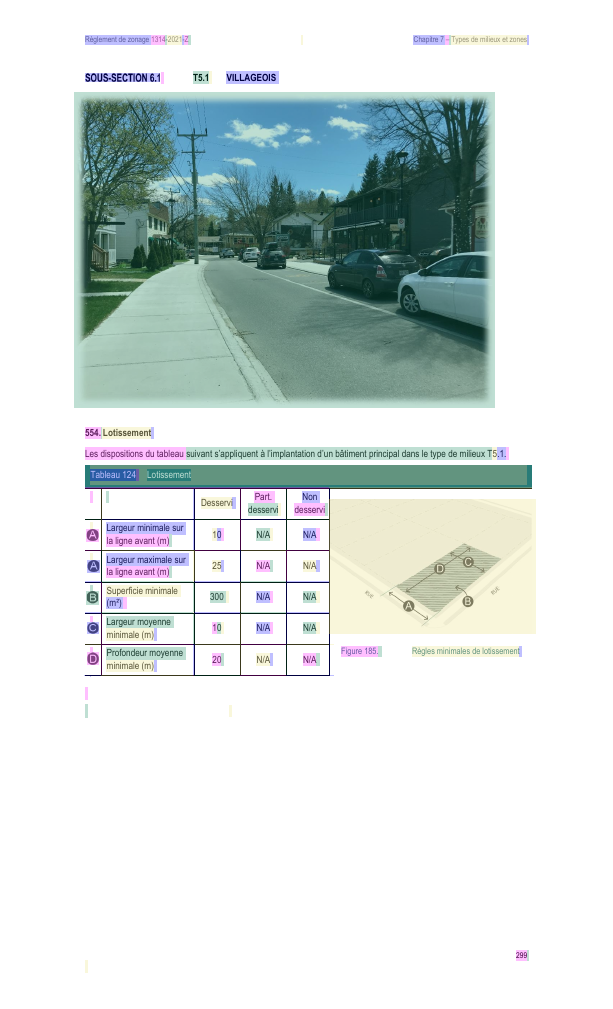

pi.mark(page, color=["blue", "magenta", (0.0, 0.5, 0.32), (233, 222, 111)], labelfunc=repr)

(yes, that just cycles through the colors for each new object)
